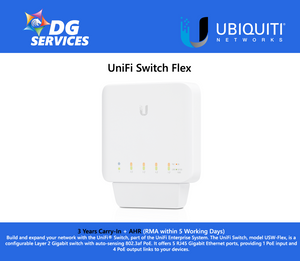

UniFi Switch Flex
WARRANTY OPTIONS
Default : 1 Year Carry-In
Upgrade Option : Advance Hardware Replacement for UniFi AP (AHR)
- (Carry in) Swap your RMA within 5 working days instead of 8 weeks
Upgrade Option : Ubiquiti AHR with 1+*yrs Extended Warranty
- Advance Hardware Replacement + Extended Warranty for UniFi AP - (Carry in) Swap your RMA within 5 working days instead of 8 weeks
*Number of Year for extended warranty
5-Port managed PoE switch with (1) 802.3at/bt (PoE+/PoE++) input port and (4) 802.3af (PoE) Gigabit Ethernet ports
Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.
The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.
Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.
Managed by UniFi Network Controller version: 5.10.3 or higher
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
PRODUCT SPECIFICATIONS
| USW-FLEX | |
| Weight | 230 g |
| (8.11 oz) | |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| PoE Out (Ports 2-5) | 802.3af (Pins 1, 2+; 3, 6-) |
| Max Power Consumption | 5W |
| (Excluding PoE Output) | |
| Max PoE Wattage Per Port | 15.4W |
| Total PoE Power Budget | |
| Powered by 802.3af | 8W |
| Powered by 802.3at | 20W |
| Powered by 802.3bt | 46W |
| Powered by PoE Adapter | 46W |
| (Enabled in Controller) | |
| Voltage Range | |
| 802.3af | 44 - 57V |
| 802.3at/bt | 50 - 57V |
| LEDs | |
| System | Status |
| RJ45 Data Ports | PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Operating Temperature | |
| 46W PoE Output | -40 to 55° C (-40 to 131° F) |
| 25W PoE Output | -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POWER METHOD (PORT 1) | |
| PoE Type | Recommended PoE Source |
| 802.3af/at (Pins 1, 2+; 3, 6-) | USW-24-PoE (sold separately) |
| 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) | USW-Pro-24-PoE (sold separately) |
| 50V/60W PoE Adapter* | PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately) |
| USW-FLEX-UTILITY 60W POE ADAPTER | |
| Dimensions | 118.5 x 63 x 34.7 mm |
| (4.66 x 2.48 x 1.36") | |
| Weight | 206 g |
| (7.27 oz) | |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100-240VAC |
| Input Current | 1.5A (Max.) |
| Efficiency | > 86% |
| Output Ripple | 200mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature | -20 to 60 ̊ C (-4 to 140 ̊ F) |
| Storage Temperature | -30 to 70 ̊ C (-22 to 158 ̊ F) |
| Operating Humidity | 5 to 90%, Noncondensing |
| Surge Immunity | 4kV Difference and Common Mode |
| * To enable PoE output power, select Power Source > PoE Injector in UniFi Controller. | |
