UniFi Security Gateway Pro
WARRANTY OPTIONS
Default : 1 Year Carry-In
Upgrade Option : Advance Hardware Replacement for UniFi AP (AHR)
- (Carry in) Swap your RMA within 5 working days instead of 8 weeks
Upgrade Option : Ubiquiti AHR with 1+*yrs Extended Warranty
- Advance Hardware Replacement + Extended Warranty for UniFi AP - (Carry in) Swap your RMA within 5 working days instead of 8 weeks
*Number of Year for extended warranty

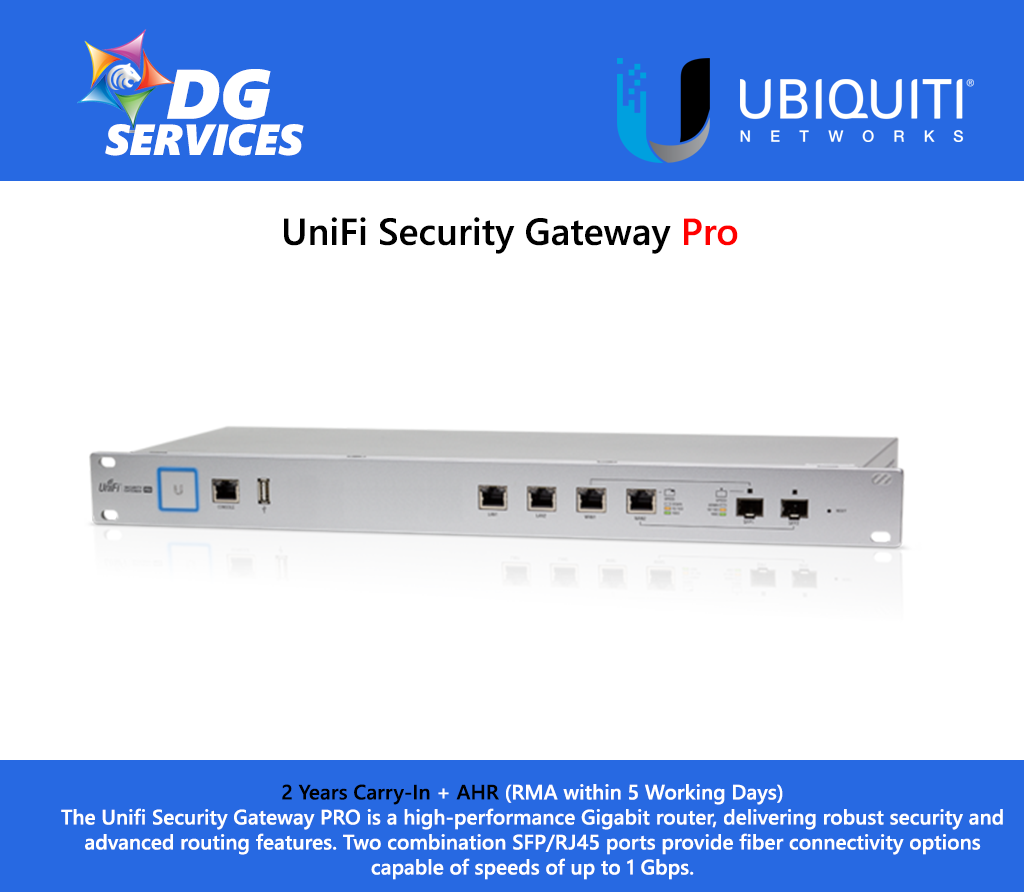

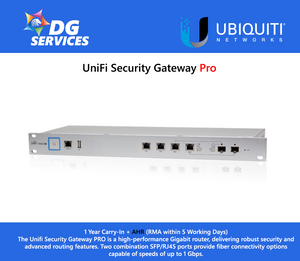

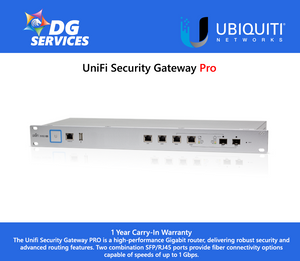

Build your secure and flexible network with Ubiquiti Networks® UniFi® Security Gateway PRO, part of the UniFi Enterprise System. The Unifi Security Gateway PRO is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.
Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.
Features:
- (2) Gigabit RJ45 Ethernet Ports
- (2) Gigabit Combination RJ45/SFP Ports
- 4 Gbps Full Line Rate Layer 3 Forwarding
- 1+ Million Packets per Second for 64-Byte Packets
- Sophisticated and Intuitive Graphical UI Control
- Integrated and Managed by UniFi Controller Software
Main Features
- Advanced Security, Monitoring, and Management
- Sophisticated Routing Features
- Integrates with UniFi® Controller Software
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
PRODUCT SPECIFICATIONS
| Dimensions | 135 x 135 x 28.3 mm |
| (5.32 x 5.32 x 1.11") | |
| Weight | 366 g |
| (12.9 oz) | |
| Max. Power Consumption | 7W |
| Power Supply | 12VDC, 1A Power Adapter (Included) |
| Power Input | 9 to 24VDC, Supported Voltage Range |
| LEDs | |
| System | Status |
| Serial Console | Power |
| Port Data Ports | Speed/Link/Activity |
| Networking Interfaces | |
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (3) 10/100/1000 Ethernet Ports* |
| Layer 3 Forwarding Performance | |
| Packet Size: 64 Bytes | 1,000,000 pps |
| Packet Size: 512 Bytes or Larger | 3 Gbps (Line Rate) |
| Processor | Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Certifications | CE, FCC, IC |
| Wall‐Mountable | Yes |
| Operating Temperature | ‐10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| 5 GHz | 6-25 dBm |
| MIMO | |
| 2.4 GHz | 4x4 |
| 5 GHz | 4x4 |
